Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer

Supply Ability : 5000 Sets / Month

Brand Name : WINLAB®

material : Heavy-Duty Steel Frame & Wooden Cabinets

type : Laboratory C-Frame Workbench

Delivery Time : 15 - 25 Working Days (Depends on project scale)

general use : Laboratory Furniture / Medical Workstation

Packaging Details : Export Standard Plywood Case with Inner PE Foam Protection

design style : Industrial Modular & Ergonomic

Usage : Scientific Research, Clinical Testing & Quality Control

Material : 60*40*1.5mm Cold-Rolled Steel Tube + 18mm Premium Melamine/MDF

Place of Origin : GUANGDONG，CHINA

Model Number : 004

MOQ : 1 Set (Customized Project Supported)

application : Chemical Laboratory, Hospital, University Research Center, Pharmaceutical Plant, Cleanroom

Corrosion Proof : Yes (Epoxy Coated Frame & Melamine Cabinets)

Keyword : C-frame lab bench, steel wood laboratory workbench, chemical resistant lab table, modular lab workstation, medical desk

Feature : Modular C-Frame Structure, Anti-Corrosion, Heavy Load-Bearing

mail packing : N (Heavy-duty export plywood case)

MOQ : 1 Set (Customized Project Supported)

Product name : Lab Work Bench

Certification : ISO9001，CE

Function : Precision Analytical & Chemical Research Workstation

Price : $200 - $700/ Meter

Payment Terms : L/C,T/T,Western Union

Contact Now

Side Lab Bench with Base Cabinet and Drawer High Quality Laboratory Furniture C Frame Lab Table

Product Description

Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer

WINLAB® Modular C-Frame Steel-Wood Laboratory Bench

The Ultimate Balance of Flexibility and Strength The WINLAB® C-Frame series is engineered with an independent structural steel frame that provides superior stability while maximizing legroom and under-bench storage flexibility. This modular design allows for seamless integration of suspended, mobile, or floor-mounted cabinetry, making it the most versatile workstation for modern, evolving research environments.

Advanced Reconfiguration & Ergonomics Unlike traditional fixed units, the C-Frame structure offers effortless access to the floor area for superior sanitation and easy maintenance. The bench system is designed for rapid assembly and reconfiguration—cabinets can be moved, added, or removed without compromising the integrity of the work surface. With integrated shock absorption and a high-grade steel frame, the load-bearing capacity exceeds 250kg/m².

Product Details

Main Cabinet Body: Constructed from premium 1.0mm thick cold-rolled steel sheets. The surface undergoes rigorous pickling and phosphating, followed by an epoxy resin electrostatic powder coating (cured at 220°C). This ensures excellent resistance to acid, alkali, and corrosion. The double-layer door design is filled with soundproofing materials for a quieter lab environment. Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
Knee Space Rails: Manufactured from high-quality 30*60*1.5mm cold-rolled steel, providing an ultra-stable connecting framework. Drawer Slides: Equipped with premium DTC silent self-closing (soft-close) slides for smooth and durable operation. Door Hinges: Features DTC 105°/175° buffer hinges or high-grade stainless steel self-closing hinges, tested for tens of thousands of continuous openings. Handles: Available in multiple ergonomic designs including non-welded linear handles, C-shaped stainless steel handles, or flush-inserted aluminum handles.

Technical Specifications

C-Frame Laboratory Bench

1. Heavy-Duty Frame Structure

  • Main Frame: Constructed from high-quality 40*60*1.5mm cold-rolled square steel tubes.

  • Surface Treatment: Undergoes rigorous grinding, polishing, rust removal, and phosphating. Finished with advanced epoxy resin electrostatic powder coating (cured at 220°C) for ultimate corrosion resistance.

  • Leveling Feet: Laboratory-specific adjustable feet with a minimum adjustment range of ≥35mm, ensuring extreme stability and high load-bearing capacity on uneven floors.

2. Worktop Options (Fully Customizable)

  • Phenolic Resin: 12.7mm thickness (with edges thickened to 25.4 mm) / 16mm / 19mm / 25mm.

  • Epoxy Resin: 15mm / 16mm / 19mm / 25mm thickness (Superior chemical & heat resistance).

  • Ceramic: 15mm / 20mm thickness (Maximum scratch and heat resistance).

  • Trespa TopLab: 13mm / 16mm / 20mm thickness.

  • Granite/Marble: 20 mm thickness (Ideal for high-stability weighing tables).

3. Suspended/Mobile Cabinet Options (Two Premium Choices)

Option A: Eco-Friendly Wooden Cabinet Units (Cost-Effective)

  • Constructed from 15mm thick body panels and 18mm thick door/drawer fronts using high-quality, eco-friendly double-faced MDF/melamine boards.

  • Key Detail: All edges are meticulously sealed with 2mm thick PVC edge banding to guarantee superior moisture resistance and a firm, straight finish.

Option B: Premium Steel Cabinet Units (Maximum Durability)

  • Built entirely from 1.0mm thick cold-rolled steel sheets. After epoxy coating, the total thickness reaches an ultra-durable 1.15mm–1.2mm.

  • Features a double-layer door structure internally filled with premium soundproofing materials for a quieter lab environment.

4. Premium Hardware Accessories

  • Drawer Slides: Industry-leading DTC silent self-closing (soft-close) slides.

  • Door Hinges: DTC 105°/175° self-closing buffer hinges or premium stainless steel self-closing hinges.

  • Handles: Ergonomic options including non-welded linear handles, C-shaped stainless steel handles, or flush-inserted aluminum handles.

Premium Component Details

Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer

1. Independent C-Frame Structure

Constructed from robust 40*60*1.5mm rectangular steel tubes. The independent C-shaped frame provides maximum legroom and exceptional load-bearing capacity (≥250kg/m²), ensuring the worktop remains stable even when cabinets are removed or reconfigured

2. Premium Eco-Friendly Wood & Edge Banding

The cabinet body is crafted from high-quality 15mm/18mm double-faced MDF/melamine boards. To guarantee long-lasting moisture resistance in wet lab environments, all exposed edges are meticulously sealed with 2mm thick heavy-duty PVC edge banding.

Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer

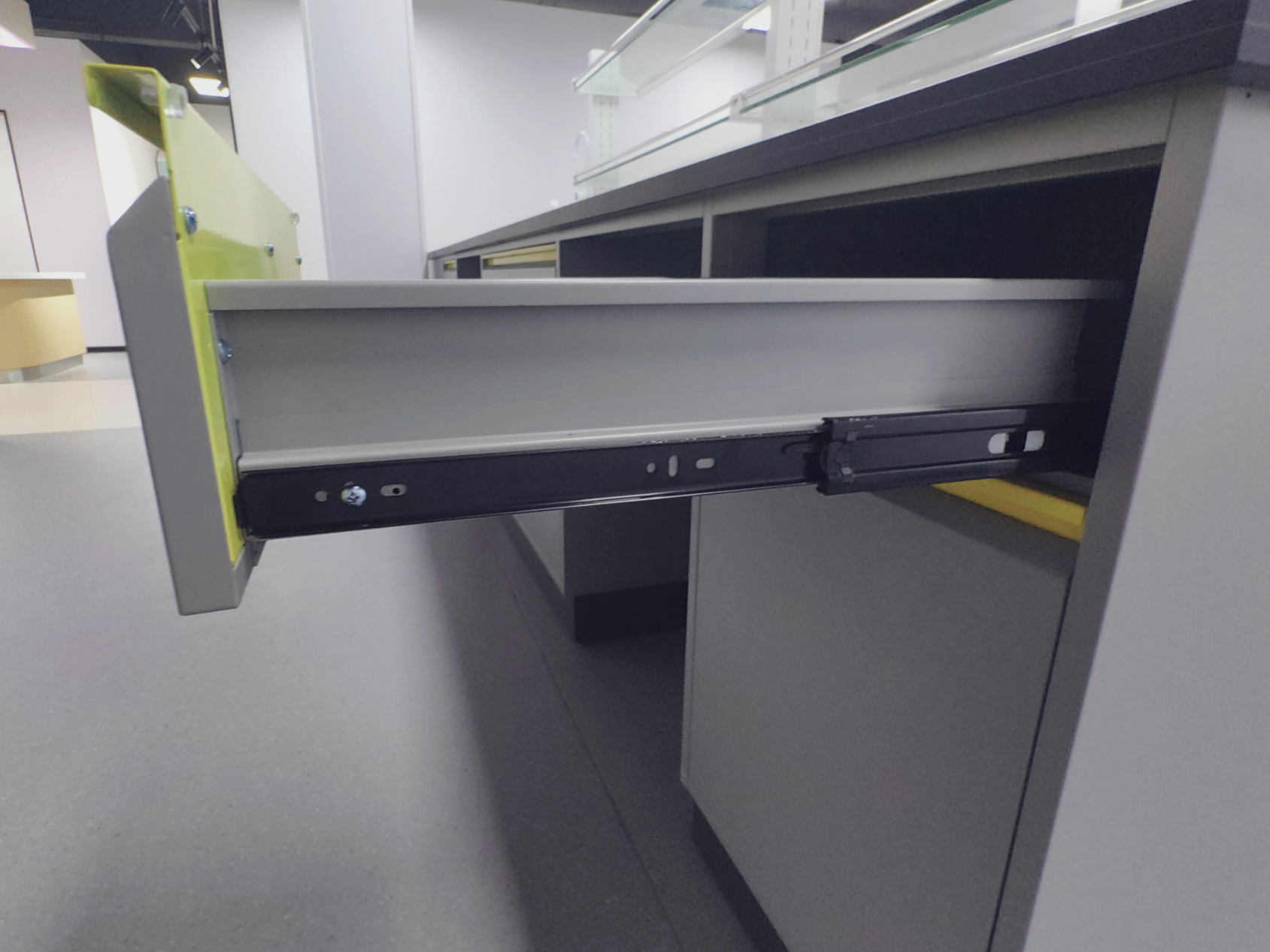

3. DTC Silent Drawer Slides

Equipped with industry-leading DTC 16-inch, three-section silent slide rails. Designed for high load capacity and smooth, jam-free operation under heavy daily use.

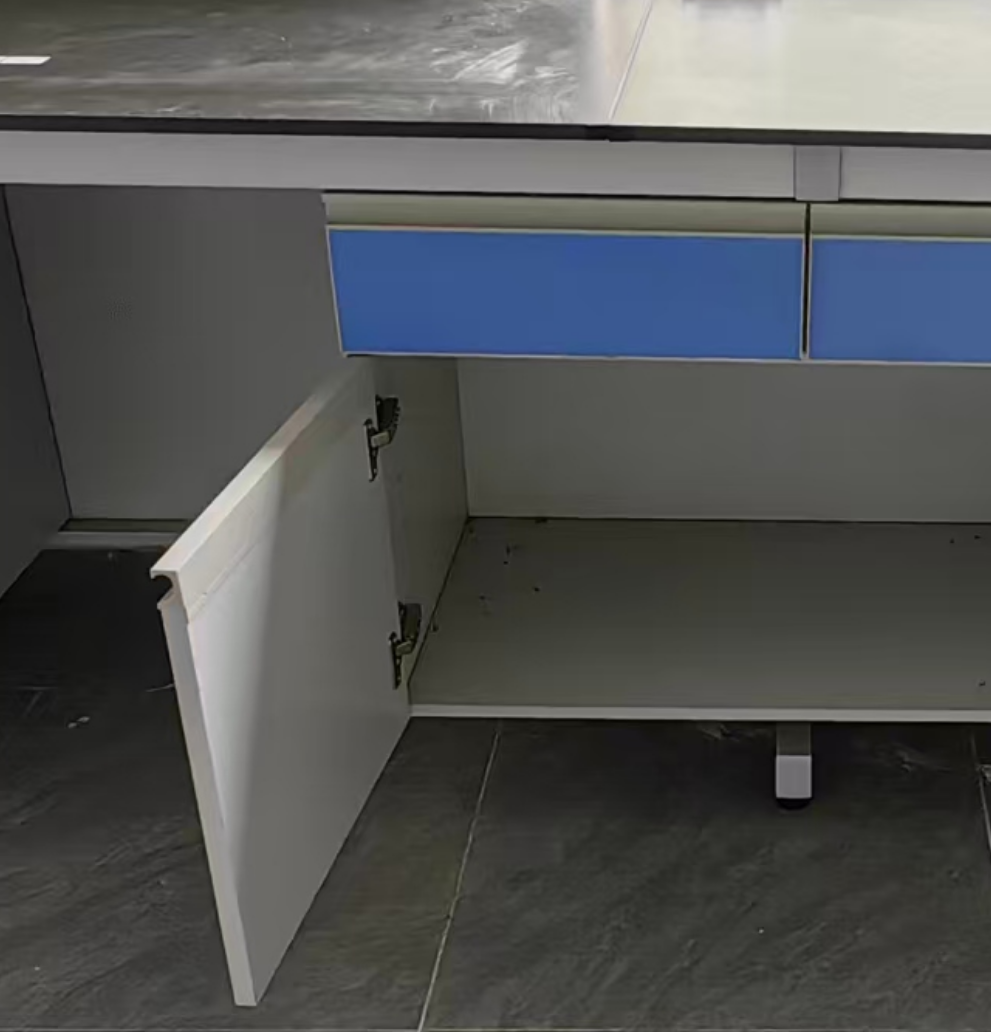

4. DTC 105°/175° Buffer Hinges

High-performance DTC soft-close hinges (or premium stainless steel options). Tested for tens of thousands of seamless opening and closing cycles without structural failure, ensuring a quiet laboratory environment.

 Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer

5. Ergonomic Handle Options

We offer customizable, anti-corrosion hardware to match your lab's workflow. Options include sleek flush-inserted aluminum alloy handles, classic C-shaped 304 stainless steel handles, or durable PVC linear handles. All handles are securely anchored to the 18mm cabinet doors, ensuring a comfortable grip and long-lasting durability even under heavy daily use.

Why Choose WINLAB C-Frame Benches?

  • Exceptional Load Capacity: Reinforced independent C-frame structure capable of bearing up to 250 kg/m², ideal for heavy precision instruments.
  • Ultimate Moisture Resistance: Premium wooden cabinets meticulously sealed with 2mm heavy-duty PVC edge banding to thrive in wet lab environments.
  • Flexible & Optimized Storage: Maximize your operational workspace with smart, modular suspended or mobile under-bench cabinetry.
  • Easy Maintenance: The open floor-clearance design allows for effortless cleaning, superior sanitation, and quick reconfiguration.
  • Cost-Effective Investment: Factory-direct pricing offering the perfect balance of robust steel framework and economical wooden cabinetry.

Standard Dimensions & Specifications

(Note: We provide full OEM/ODM services. Custom sizes are highly welcomed based on your floor plan.)

Product Category

Standard Dimensions (L * W * H)

Customization
C-Frame Wall Bench 1000 * 750 * 850/900 mm (3.28' * 2.46' * 2.78') ✅ Fully Customizable
C-Frame Island Bench 1000 * 1500 * 850/900 mm (3.28' * 4.92' * 2.78') ✅ Fully Customizable
C-Frame Corner Bench 1000 * 1000 * 850/900 mm (3.28' * 3.28' * 2.78') ✅ Fully Customizable

Modular Island Bench Configurations

Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
YD-CL2

  1. Core Structure: Heavy-duty C-Frame steel structure with premium wooden cabinetry.

  2. Reagent Rack: Dual-tier steel-and-glass reagent rack for optimal vertical storage.

  3. Power Supply: Bench-mounted vertical pedestal electrical socket boxes.

  4. Hardware: Durable aluminum alloy U-shaped handles.

  5. Storage A: Single-door, single-drawer wooden base cabinet units.

  6. Storage B: Double-door, double-drawer wooden base cabinet units.

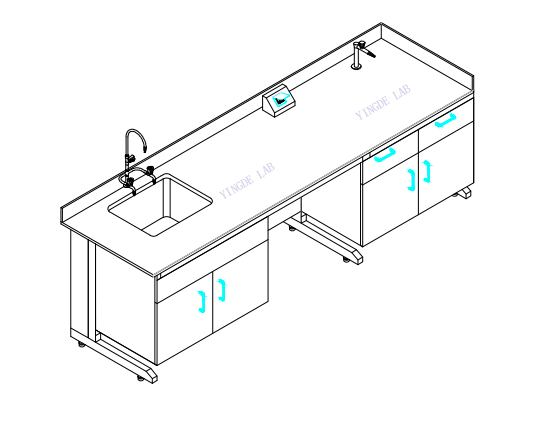

 YD-CL3

  1. Core Structure: Heavy-duty C-Frame steel-wood hybrid island bench system.

  2. Power Supply: Tabletop-mounted pedestal electrical sockets.

  3. Plumbing: Laboratory-grade copper water faucet and chemical-resistant PP sink.

  4. Worktop Detail: 60mm anti-spill marine edge for superior fluid containment.

  5. Gas/Air Supply: Single-port laboratory-grade benchtop valve.

  6. Hardware: Sleek aluminum alloy linear handles.

  7. Storage: Double-door, double-drawer wooden base cabinet units.

  8. Wash Area Base: Dedicated double-door wooden under-sink cabinet.

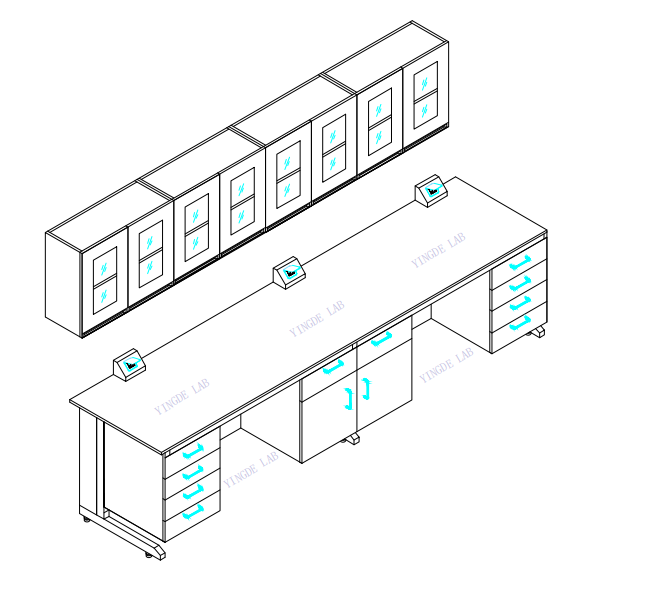

 YD-CL3

  1. Core Structure: Heavy-duty C-Frame steel-wood wall bench system.

  2. Overhead Storage: Wall-mounted closed wooden cabinetry for secure upper storage.

  3. Power Supply: Tabletop-mounted pedestal electrical sockets.

  4. Hardware: Anti-corrosion stainless steel U-shaped handles.

  5. Storage A: High-capacity four-drawer wooden base cabinet units.

  6. Storage B: Double-door, double-drawer wooden base cabinet units.
Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer Side Lab Work Bench Corrosion Proof Modular Lab Bench With Base Cabinet And Drawer
YD-CL4

  1. Core Structure: Modular C-Frame steel-wood island bench system.

  2. Overhead Storage: Suspended wooden wall cabinets integrated directly into the rack structure.

  3. Reagent Rack: Integrated structural steel columns supporting adjustable shelving.

  4. Power Supply: Electrical outlets seamlessly integrated into the rack columns.

  5. Hardware: Ergonomic aluminum alloy inner-buckle (recessed) handles.

  6. Storage A: Suspended single-door, single-drawer wooden cabinet units.

  7. Storage B: Suspended double-door, double-drawer wooden cabinet units.

 YD-CL5

  1. Core Structure: Modular C-Frame steel-wood island bench system.

  2. Reagent Rack: Integrated structural steel columns with adjustable shelves.

  3. Power Supply: Electrical outlets seamlessly integrated into the rack columns.

  4. Gas/Air Supply: Desktop-mounted double-port laboratory gas/air valve.

  5. Hardware: Durable aluminum alloy exposed linear handles.

  6. Storage A: High-capacity four-drawer wooden base cabinet units.

  7. Storage B: Double-door wooden base cabinet units.

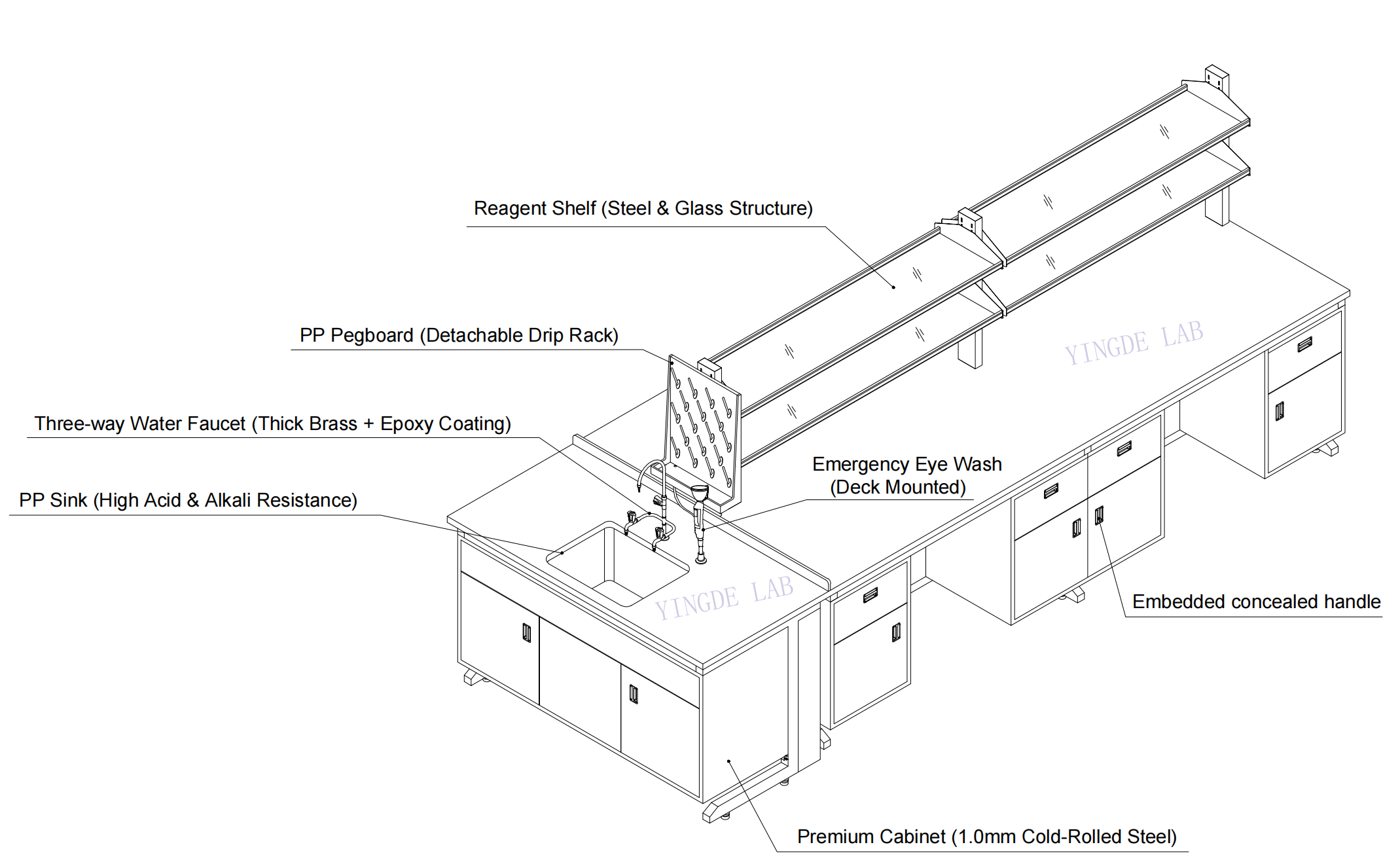

 YD-CL1

  1. Core Structure: Heavy-duty C-Frame island bench system.

  2. Reagent Rack: Aluminum alloy column reagent rack with adjustable tempered glass shelves.

  3. Power Supply: Bench-mounted pedestal electrical outlets.

  4. Hardware: Ergonomic linear aluminum alloy handles.

  5. Wash Area: Integrated end-sink configuration.

  6. Worktop Detail: 80mm anti-spill marine edge for fluid containment.

  7. Storage A: Single-door, single-drawer suspended cabinet units.

  8. Storage B: Double-door, double-drawer suspended cabinet units.

  9. Plumbing: Laboratory-grade gooseneck water faucet and high-resistance PP sink.

  10. Accessories: Detachable high-density PP pegboard (drip rack).

Unsure which configuration fits your lab?

Send us your laboratory floor plan (CAD/PDF). Our senior engineers will provide a Free 3D Layout Design & Quotation within 24 hours.
