Modern Laboratory Balance Table 36mm Thick Precision Analytical Balance Table Anti Vibration

Name: Modern Laboratory Balance Table 36mm Thick Precision Analytical Balance Table Anti Vibration
Brand: WINLAB®
Price: 300 USD

Wholesale Modern Laboratory Balance Table 36mm Thick Precision Analytical Balance Table Anti Vibration from china suppliers

Material : 1.0mm Cold-Rolled Steel (Epoxy Coated)

Delivery Time : 15-20 Work Days (Due to precision seamless thermal welding process)

material : All steel

Price : $300 - $800/ Meter

Packaging Details : Export-Standard Heavy-Duty Plywood Cases (with shockproof foam)

type : Laboratory Furniture

Certification : ISO9001，CE

Supply Ability : 5000 Sets / Month

general use : Commercial Furniture

Core Feature : 350kg/m² Load-bearing, High Chemical Resistance

mail packing : N (Export-standard heavy-duty plywood case)

Keyword : balance table

Design Style : Modular & Ergonomic

MOQ : 1 Set (Bulk Order & Customization Supported)

design style : Modern

Feature : Resistance to corrosion, strong acid, strong alkali

Product Type : Heavy-Duty Laboratory Furniture

application : Living Room, Office Building, Hospital, School, Leisure Facilities, Farmhouse, Other, Basement

Usage : Commercial furniture

Product name : All steel Laboratory balance table

Function : Precision Analytical Workstation

Brand Name : WINLAB®

Payment Terms : T/T (30% Deposit，70% Before Shipment) L/c at sight

Corrosion Proof : Strong corrosion resistance

MOQ : 1 Set (Customized Project Supported)

Model Number : 0019

Place of Origin : GUANGDONG，CHINA

Contact Now

Premium Anti-Vibration Modern Laboratory Balance Table - 36mm Thick Precision Weighing Desk Setup

Model: WL-BT Series

1. Product Overview

In high-level analytical laboratories, even the slightest environmental vibration—from footsteps, HVAC systems, or street traffic—can compromise micro-manipulation procedures and distort high-precision balance readings.

The WINLAB WL-BT Anti-Vibration Balance Table is expertly engineered to neutralize these invisible threats. Designed specifically for sensitive analytical balances and precision optical instruments, this workstation guarantees absolute stability, delivering up to 1/100,000 weighing accuracy for your most critical experiments.

Modern Laboratory Balance Table 36mm Thick Precision Analytical Balance Table Anti Vibration

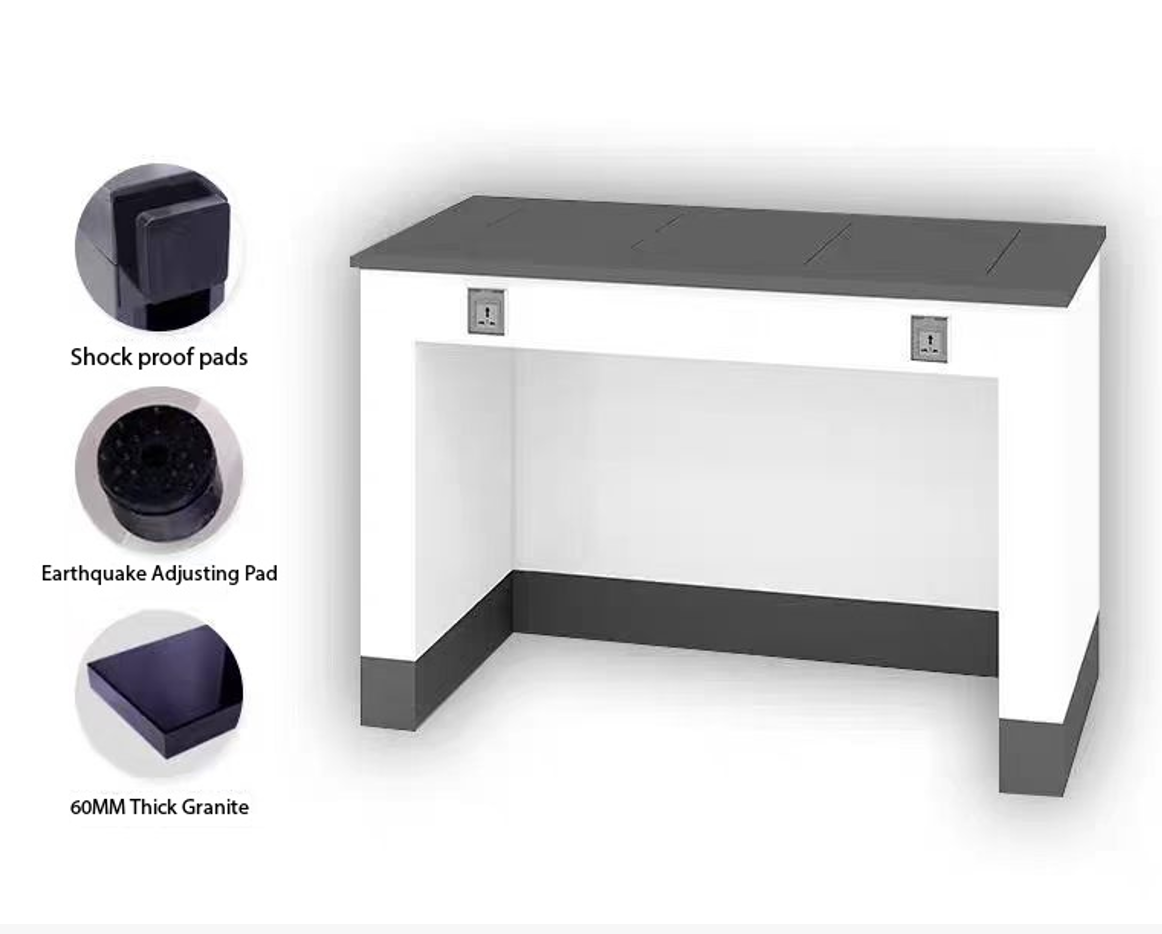

2. Proprietary 3-Stage Damping Technology

To achieve flawless isolation from building vibrations, the WL-BT employs a scientifically calibrated, three-tier shock absorption architecture:

● Stage 1 (Base Isolation): Heavy-duty, micro-adjustable anti-vibration leveling feet that decouple the frame from floor-level disturbances.

● Stage 2 (Mid-Level Absorption): High-density 85-shore shock-absorbing elastomer pads specifically positioned to absorb mid-to-high frequency mechanical vibrations.

● Stage 3 (Core Damping): A massive 60mm thick monolithic marble or granite block acting as a high-inertia central damping stage, completely neutralizing residual micro-vibrations before they reach your instruments.

3. Unyielding Build Quality & Material Specs

● Rigid All-Steel Chassis: The main cabinet and support structure are constructed from premium 1.0mm full-thickness cold-rolled steel, providing a rock-solid foundation that will never warp or bow.

● Chemical-Resistant Armor: The entire steel frame undergoes rigorous phosphating before being coated with an electrostatically applied epoxy resin powder (cured at 220°C). This creates a smooth, 1.15mm–1.20mm thick barrier that is virtually immune to harsh laboratory acids, alkalis, and solvents.

● Integrated Electrical Utilities: Thoughtfully equipped with built-in power sockets (customizable to US, EU, UK, or any regional standards) to keep your workspace organized and cable-free.

● Premium Edge Finishing: The marble/granite damping block is precision-polished with beveled edges to prevent chipping and ensure operator safety.

4. Standard Dimensions & Configurations

WINLAB offers modular sizing to fit your specific spatial requirements. Custom dimensions are always welcome.

Model	*Overall Dimensions (W D * H)**	Central Damping Platform
WL-BT-900	900mm * 600mm * 850mm	60mm Solid Marble/Granite
WL-BT-1200	1200mm * 600mm * 850mm	60mm Solid Marble/Granite
WL-BT-1500	1500mm * 600mm * 850mm	60mm Solid Marble/Granite
(Note: Full-coverage marble/granite tabletops can also be manufactured upon request.)

5. Typical Laboratory Applications

Our anti-vibration tables are the trusted foundation for sensitive equipment across multiple disciplines:

● Analytical Chemistry: High-precision analytical balances and mass spectrometers.

● Life Sciences: Micro-manipulation procedures, IVF workstations, and confocal microscopy.

● Industrial QC: Metrology, surface testing, and electronic instrument calibration.

● Semiconductor: Cleanroom optical inspection and lithography support.

Modern Laboratory Balance Table 36mm Thick Precision Analytical Balance Table Anti Vibration

6. Why Source From WINLAB?

● True Factory-Direct Value: As the original manufacturer, we eliminate distributor markups, delivering uncompromising industrial quality at wholesale pricing.

● Certified Excellence: Fully CE, ISO, and GMP certified, ensuring your facility meets strict international quality assurance standards.

● Global Project Experience: Trusted by elite research institutions, hospitals, and heavy industrial cleanrooms worldwide.

● Secure Export Packaging: Every unit is securely packed in reinforced, shock-absorbing export plywood cases to guarantee 100% pristine arrival.

ACTION: REOUEST A FREEQUOTE &CUSTOM CAD DRAWING TODAY
